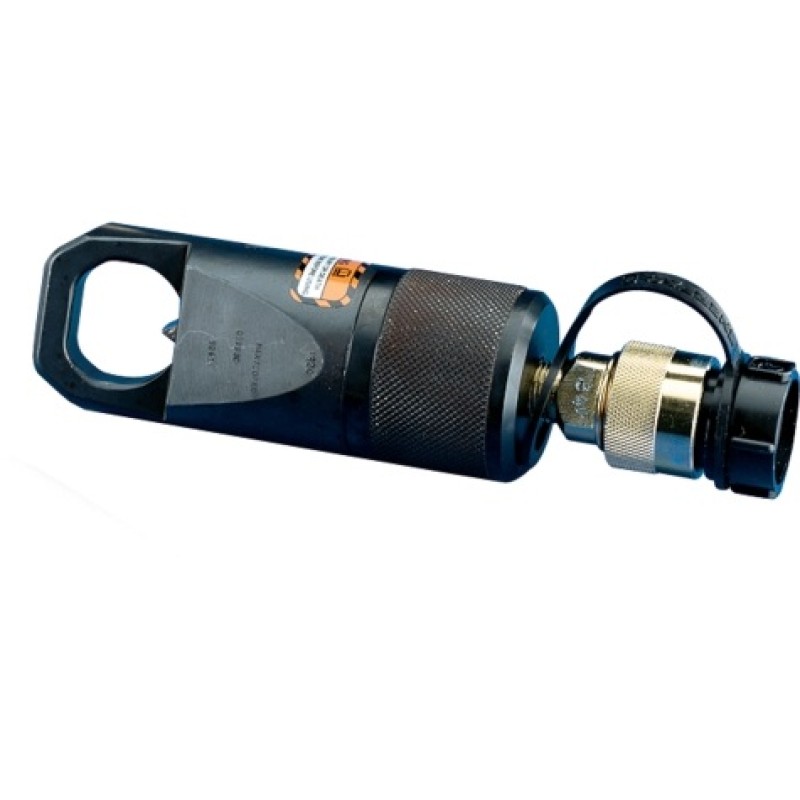

ENERPAC SPLITTER NUT 20T 32MM TO 41MM NC3241
Category:
NUT SPLITTERS & COMPONENTS
- Compact and ergonomic design, easy to use
- Unique angled head design
- Single-acting, spring return cylinder
- Heavy duty chisels can be reground
- Nut Splitters include spare chisel, spare set screw and wrench used to secure the chisel. A CR-400 coupler is standard.
Specifications
| Maximum Operating Pressure (bar) | 700 |
| Capacity (kN) | 196 |
| Cutter Head Return Type | Single-Acting, Spring Return |
| Hexagon Nut Range (mm) | 32 - 41 |
| Bolt Range (mm) | M22 - M27 |
| Maximum Material Hardness | HRC 44 |
| Oil Capacity (cm3) | 80 |
| Replacement Chisel Model Number (Moving) | NCB3241 |
| Weight (kg) | 4,4 |
